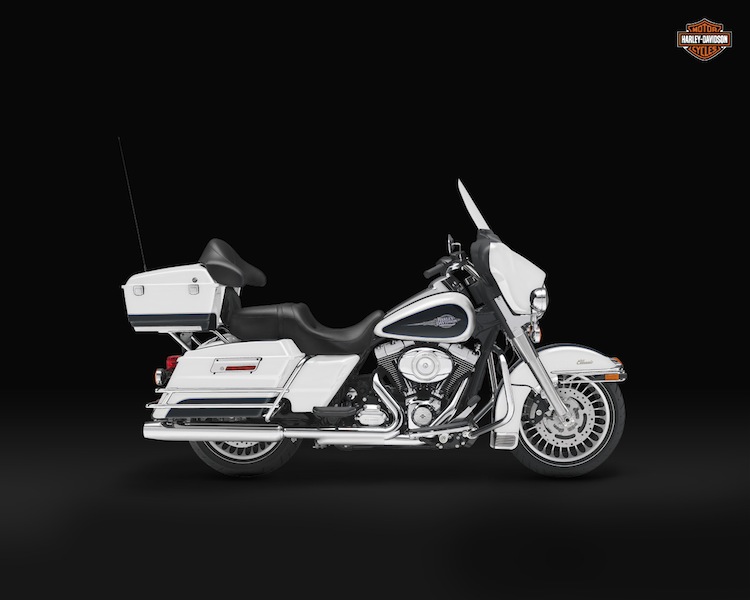

2012 Harley-Davidson FLHTC Electra Glide Classic – Canadian Specifications/Technical Details
Engine
Engine: Air-cooled Twin Cam 103™ with Integrated Oil-Cooler
Bore: 98.4 mm
Stroke: 111.1 mm
Displacement: 1,690 cc
Compression Ratio: 9.6:1
Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
Drivetrain
Primary Drive: Chain, 34/46 ratio
Gear Ratios (overall) 1st: 9.593
Gear Ratios (overall) 2nd: 6.65
Gear Ratios (overall) 3rd: 4.938
Gear Ratios (overall) 4th: 4
Gear Ratios (overall) 5th: 3.407
Gear Ratios (overall) 6th: 2.875
Chassis
Exhaust: Chrome, 2-1-2 dual exhaust with tapered muffler
Wheels, Optional Style Type: Tubeless Chrome Aluminum Profile Laced
Wheels, Front Type: Black, 28-spoke Cast Aluminum
Wheels, Rear Type: Black, 28-spoke Cast Aluminum
Brakes, Caliper Type: 32mm, 4-piston fixed front and rear
Parking Brake: N/A
Performance
Engine Torque Testing Method: J1349
Engine Torque: 135 Nm
Engine Torque (rpm): 3,250
Lean Angle, Right (deg.): 33
Lean Angle, Left (deg.): 31
Fuel Economy: Combined City/Hwy: 5.6 l/100 km (42 mpg)
Options
Colour: Birch White/Midnight Pearl
ABS: Yes
Security: Yes
Cruise Control: Yes
Dimensions
Length 98.3 in. (2497 mm)
Overall Width 38.0 in. (965 mm)
Overall Height 61.0 in. (1549 mm)
Seat Height:
– Laden2 27.3 in. (693 mm)
– Unladen 29.1 in. (739 mm)
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.7 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)
Tires (Dunlop® Harley-Davidson® Series, bias narrow whitewall):
– Front – D408F NW 130/80B17 65H
– Rear – D407 NW 180/65B16 81H
Fuel Capacity 6.0 gal. (22.7 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qt. (.95 L)
Primary Chain
Case Capacity 1.4 qts. (1.3 L)
Weight:
– As Shipped 827 lbs. (375.1 kg)
– In Running Order 864 lbs. (391.9 kg)
– Gross Vehicle Weight Rating 1360 lbs. (616.9 kg)
– Gross Axle Weight Rating
– Front 500 lbs. (226.8 kg)
– Rear 927 lbs. (420.5 kg)
Luggage Capacity
– Volume 2.26 cu. ft. (0.0633 m3)
Electric
Lights (as per country regulation), Indicator Lamps High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optiona
Gauges
Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; tachometer with fuel, voltage, oil pressure and ambient air temperature gauges.
